·GZ型電磁振動給料機 Elector-magnetic vibrating feede

振動給料機

GZ型電磁振動給料機 Elector-magnetic vibrating feeder

GZ系列電磁振動給料機廣泛應用于礦山、冶金、煤炭、建材、輕工、化工、電力、機械、糧食等各個行業，把塊狀、顆粒狀及粉狀物料從儲料倉或漏半中均勻連續或定量地給到受料裝置中。例如，向帶式輸送機、半式提升機、篩分設備等給料，向破碎機、粉碎機等喂料，以及用于自動配料、定量包裝等，并可用于自動控制的流程中，實現生產流程的自動化。

GZ elector-magnetic vibrating feeders are widely used in different industries such as mining, metallurgy, coal, building material, light industry, chemical, power, machinery and grain. They convey a given amount of block material, granule material and powdery material from the storage silo or hopper to the material receiving device in an even and uninterrupted way. For example, they feed materials through belt conveyors, bucket elevators or screening equipment to crushers or grinders. Besides, they are used for automatic charging, quantitative packaging, etc and even in the processes of automatic control to realize automation of production flow.

型號規格 Model	槽子規格			給礦粒度 Feed size	雙振幅	供電電壓	功率 Power	給料量 t/h		外形尺寸 Dimension	重量 Weight
	長	寬	高	給礦粒度 Feed size	雙振幅	供電電壓	功率 Power	水平	-10°	外形尺寸 Dimension	重量 Weight
	mm	mm	mm	mm	mm	V	kw			mm	t
GZ₁	600	200	100	50	1.75	220	0.06	5	7	910×376×485	0.07
GZ₂	800	300	120	50	1.75	220	0.15	10	14	1175×506×600	0.15
GZ₃	900	400	150	75	1.75	220	0.2	25	35	1325×574×675	0.22
GZ₄	1100	500	200	100	1.75	220	0.45	50	70	1615×762×814	0.41
GZ₅	1200	700	250	150	1.75	220	0.65	100	140	1815×840×980	0.66
GZ₆	1600	900	250	200	1.5	380	1.5	150	210	2410×1092×1530	1.25
GZ₇	1800	1100	250	250	1.5	380	3.0	250	350	2800×1332×1710	1.9
GZ₈	2200	1300	300	300	1.5	380	4.0	400	560	3302×1556×1995	3.15
GZ₉	2400	1500	300	350	1.5	380	5.5	600	840	3515×1776×2200	3.75
GZ₁₀	2500	1800	375	500	1.5	380	4×2	750	1050	3630×2500×2235	6.5
GZ₁₁	2800	2000	375	500	1.5	380	5.5×2	1000	1400	4060×2640×2310	7.7

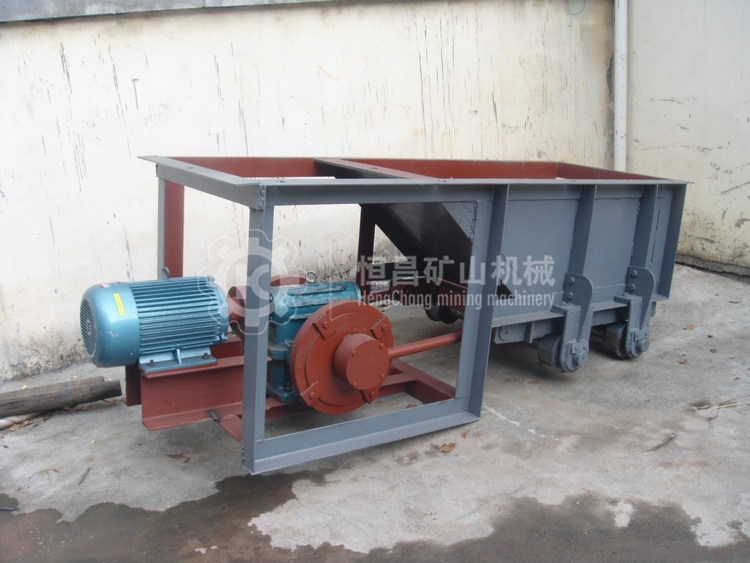

chute feeder dt (10).jpg
